Katool Automotive Equipment KT-AM120SD Two Post Lift

The Katool Automotive Equipment KT-AM120SD Two Post Lift is a heavy-duty, professional-grade lift engineered for strength, stability, and reliable performance. With a 12,000 lb lifting capacity, this clear-floor two-post lift is designed to accommodate a wide range of vehicles, including cars, trucks, and SUVs.

Its asymmetric arm configuration helps provide flexible vehicle positioning and improved door clearance, while the single-point lock release allows for convenient operation from one location. The clear-floor design keeps the workspace beneath the vehicle open and accessible, making the KT-AM120SD a practical choice for professional repair shops, service centers, and other automotive work environments.

The KT-AM120SD comes standard with a 220V single-phase hydraulic power unit. A 110V power unit upgrade is available for an additional $299, providing an alternative for locations where 220V power is not available. With a low approximately 4.3-inch minimum pad height and a maximum lifting height of approximately 70.9 inches, the lift provides the range needed to service a variety of vehicle types.

Key Features

• 12,000 lb lifting capacity for cars, trucks, and SUVs
• Asymmetric arm design for flexible vehicle positioning and improved door clearance

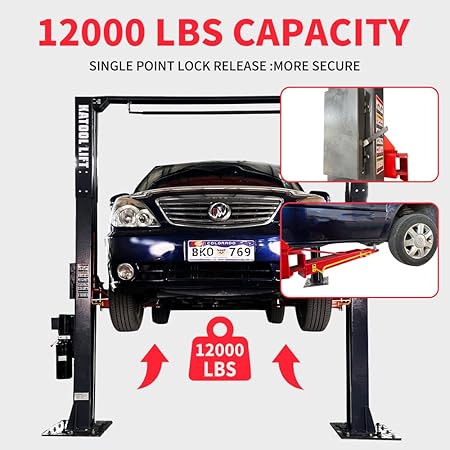

• Single-point lock release for convenient operation
• Clear-floor design for unobstructed workspace beneath the vehicle
• Approximately 4.3-inch minimum pad height for easier access to lower-clearance vehicles

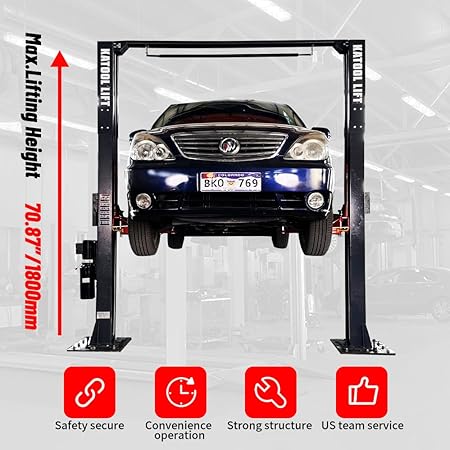

• Approximately 70.9-inch maximum lifting height

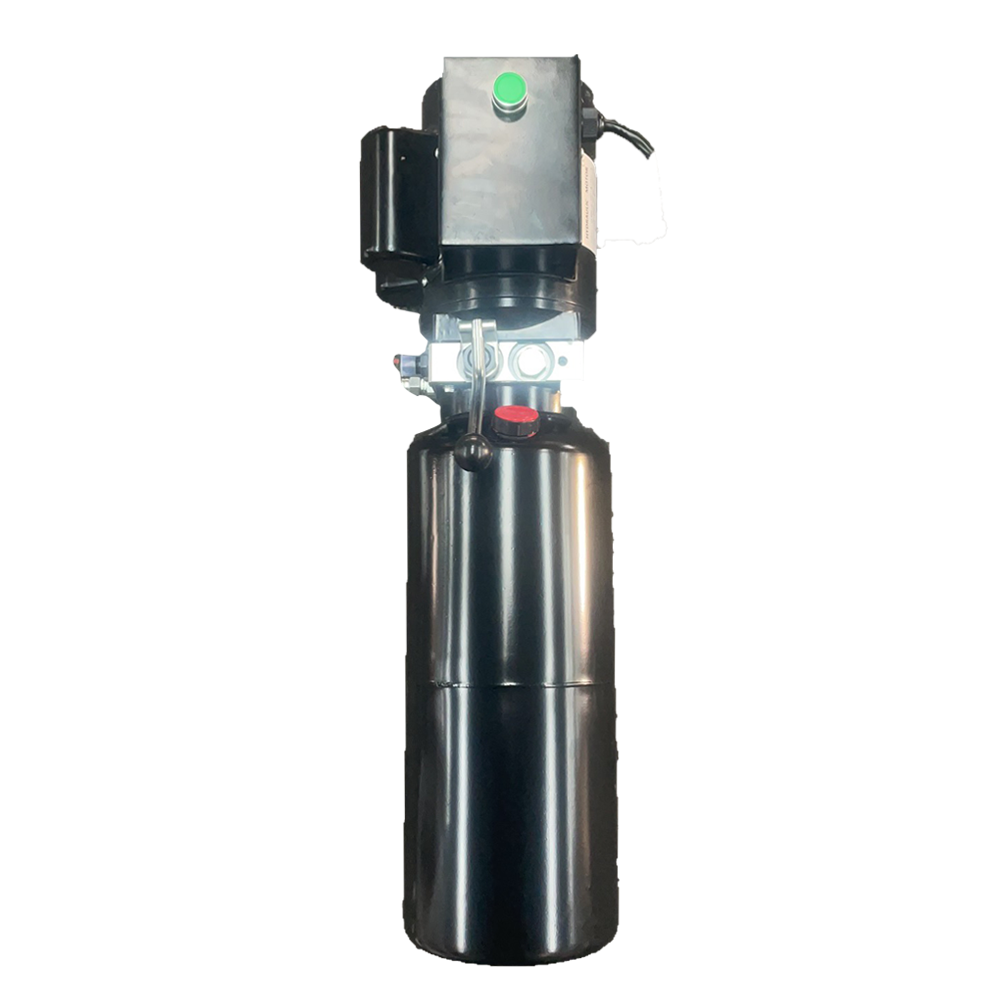

• 220V single-phase power unit included standard
• Optional 110V power unit upgrade available for $299
• Heavy-duty hydraulic lifting system designed for professional automotive service
• Ideal for repair shops, service centers, garages, and fleet maintenance facilities

KT-AM120SD Car Lift Specifications

Installation Requirements

• Minimum concrete thickness: 5.9 in / 150 mm

• Minimum concrete strength: 3,000 PSI

Understanding Two-Post Lift Weight Capacities

Two-post lifts are essential in automotive shops, but selecting the appropriate lift with the correct weight capacity is crucial for safety and equipment longevity.

Typical Weight Capacities

Two-post lifts generally have weight capacities ranging from 7,000 to 20,000 pounds, accommodating various vehicles from light-duty cars to heavy-duty trucks. It's important to note that each lift arm also has its own weight limit. For instance, a lift with a 10,000-pound total capacity may have each arm rated for 2,500 pounds. Therefore, if a vehicle's weight distribution exceeds this per-arm limit, the lift may not be suitable.

Calculating Required Lift Capacity

To determine the appropriate lift capacity:

1. Calculate Rear Axle Weight: Multiply the vehicle's total weight by the distance from the center of gravity to the front axle, then divide by the wheelbase.
2. Calculate Front Axle Weight: Subtract the rear axle weight from the total vehicle weight.
3. Determine Arm Capacity: Divide each axle's weight by two to find the load per arm.

For example, if a vehicle weighs 9,000 pounds with a 6,000-pound front axle and a 3,000-pound rear axle, each arm would need to support 3,000 pounds. In this case, a 10,000-pound lift with 2,500-pound arms would be insufficient. Opting for a 12,000-pound lift would be safer.

Importance of Choosing a Lift with Adequate Capacity

Selecting a lift with a capacity that exceeds the vehicle's weight requirements is advisable. This accounts for variables like vehicle modifications, additional equipment, or unexpected weight distributions. Many manufacturers recommend not exceeding 75% of a lift's rated capacity to maintain safety margins.

Safe Operating Practices

• Adhere to Weight Limits: Never exceed the lift's total or per-arm weight capacities.
• Proper Vehicle Positioning: Ensure the vehicle is centered and balanced on the lift to distribute weight evenly.
• Regular Maintenance: Follow the manufacturer's maintenance schedule and conduct routine inspections to identify potential issues.

By understanding and respecting the weight capacities and operational guidelines of two-post lifts, automotive shops can ensure safer working conditions and prolong the lifespan of their equipment.
