KATOOL ST-105 Smoke Leak Detector Machine-Katool Mart - Pro Shop, Garage & Farm Equipment

Katool

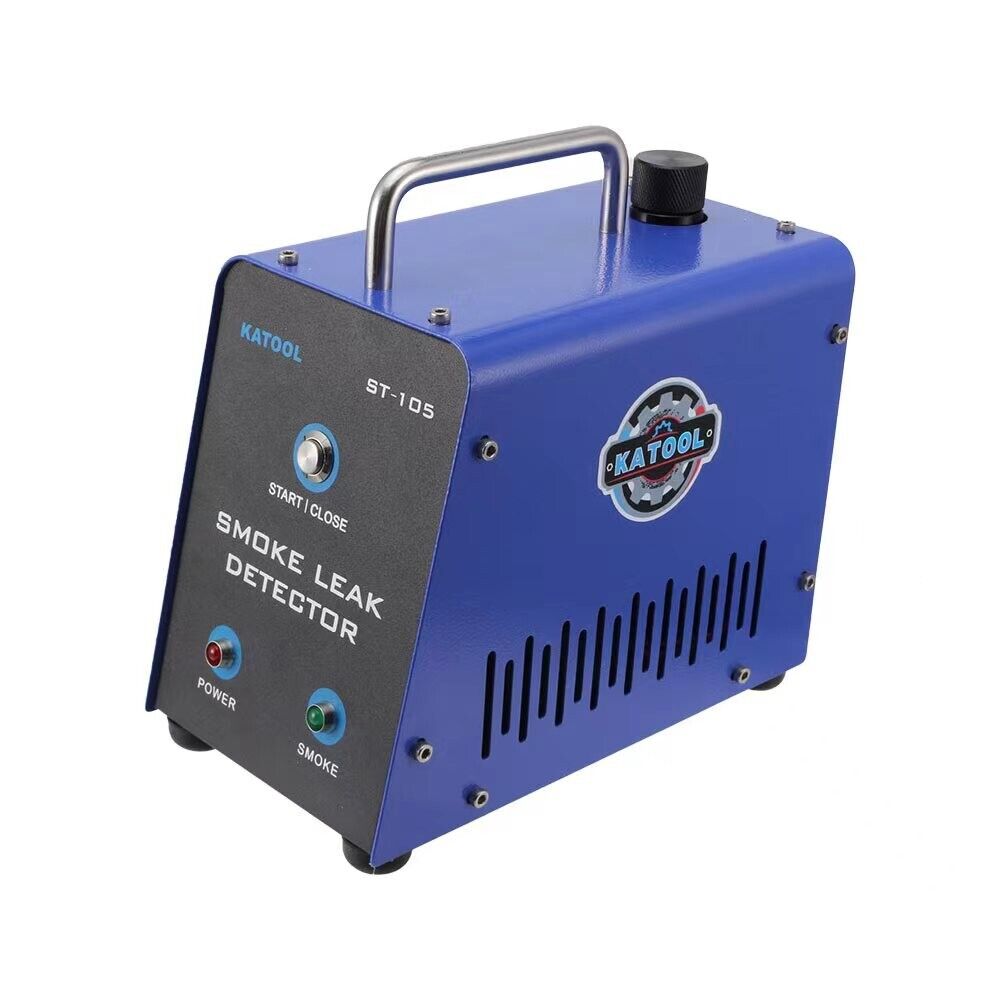

KATOOL ST-105 Smoke Car Machine Emissions Leak Detector Pipe Diagnostic Tester

0 Reviews

$79.00 $99.00

The KATOOL ST-105 smoke machine is intended for emissions leak detection and pipe diagnostic testing. Review operating instructions, compatible applications, and workshop safety requirements before use.

About the Shop:

KATOOL

Payment:

Security & Privacy

· Secure privacy

· 100% Secure payment

FREE Retuns

· Refund for lost packages damaged items

· 30-day Free Retuns

Professional Service

· 12-months warranty

· Customer Support

Features & Details

Please feel free to contact us before purchasing.

Specifications
Ambient Temperature: -10℃ ~ + 40℃
Relative Humidity: ＜85%
Test Oil: Mineral oil or baby oil
Air Pressure Output: Built-in air pump
Multi Protections: Oil outlet, over-heat and over-load protection
Output pressure:3.2Kpa(0.46psi)
Air pressure output:External air source
Power supply:DC12V battery

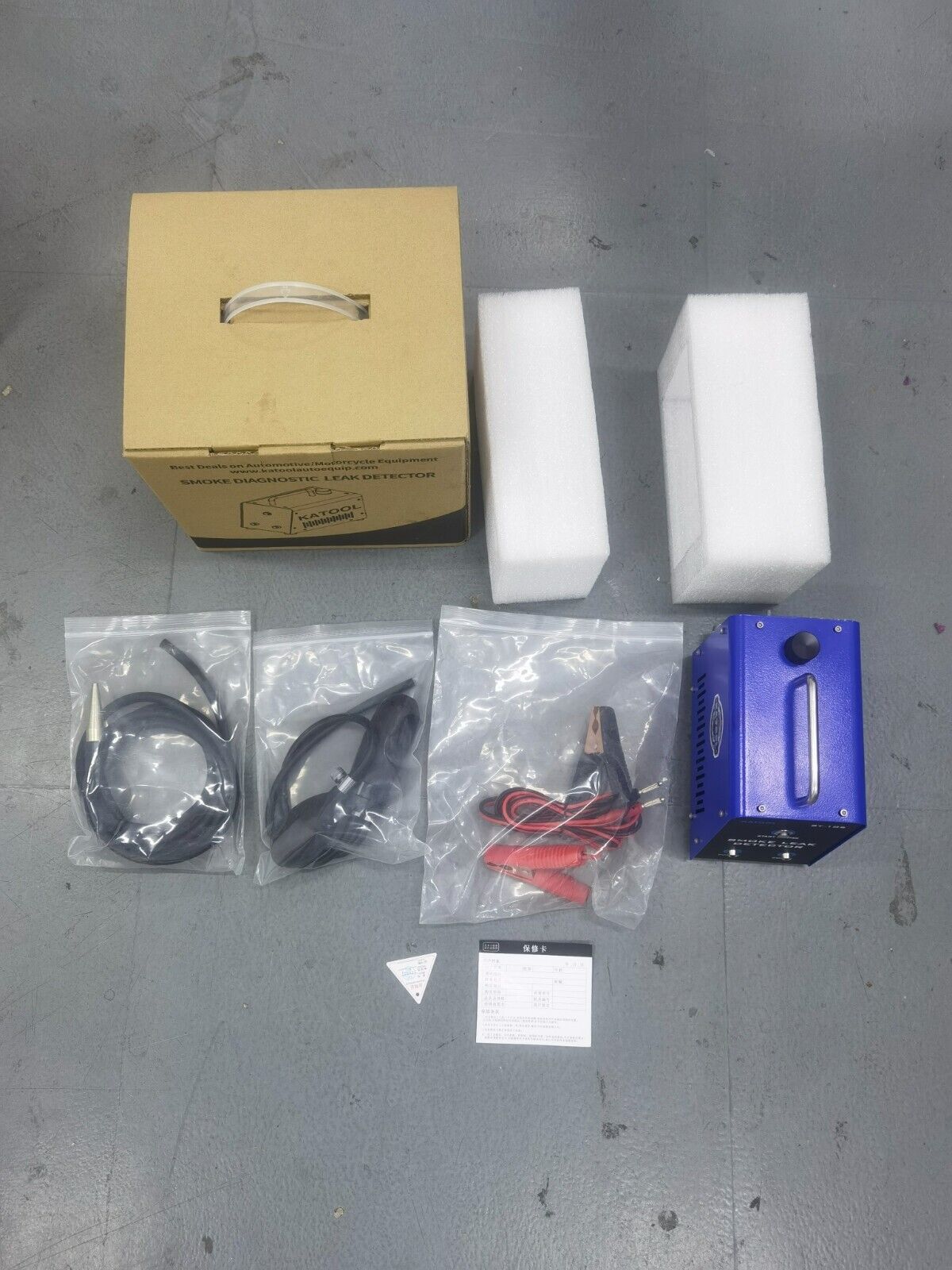

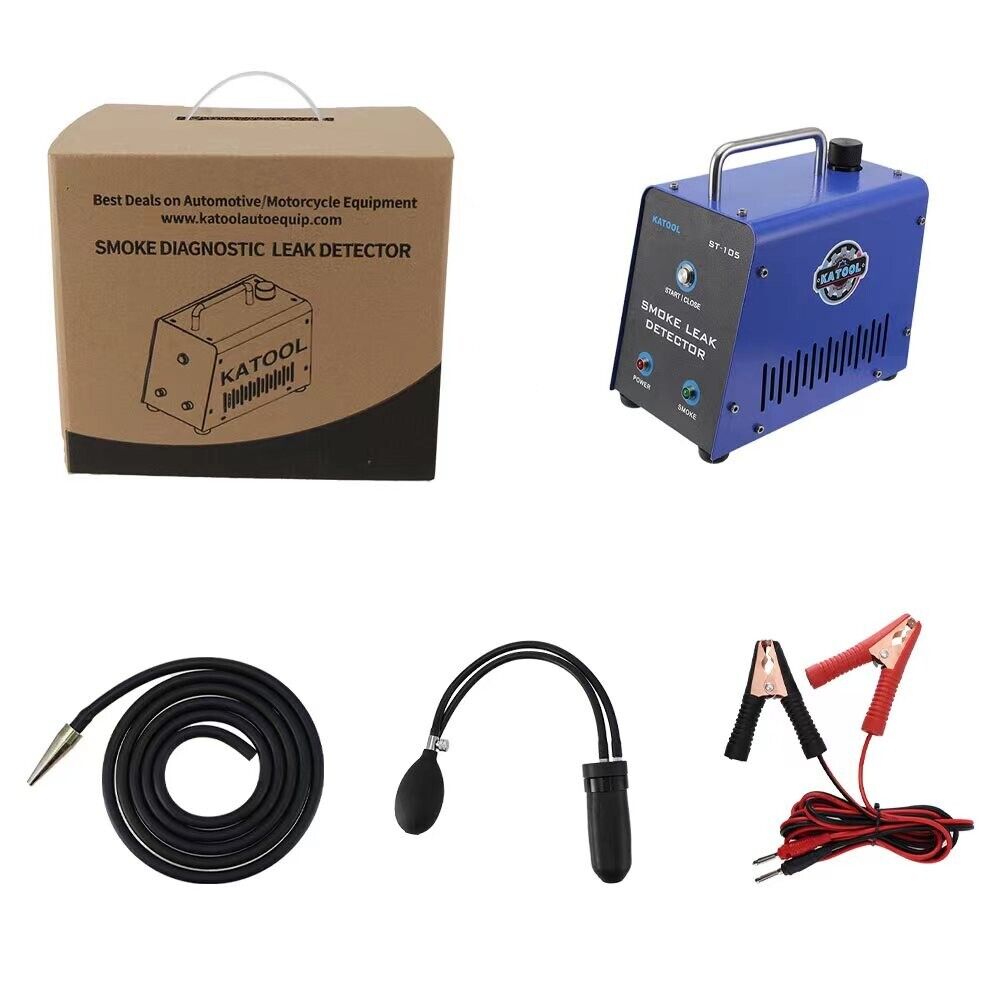

Packing List
1pc * SDT103
1pc * Standard Cone Adapter
1pc * Power Cord Clamp
1pc * Valve Core Wrench
2pc * Test Oil Refill Bottle
1pc * EVAP Special Connector
1pc * Smoke Hose

1pc* Manual Book

Cautions

1. When you use this Car Smoke Leak Detector for the first time, fill it with 10ml baby oil. Please be careful NOT to beyond this range.

2. The testing liquid: both liquid paraffin and baby oil are OK.

3. Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.

4. Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.

5. During the process of leak detection, please keep away from smoke-sensitive parts.

6. Do NOT run the detector over 8 minutes continuously. It needs interval rest.

7. The round part of this detector has temperature, please be careful to avoid burns.

8. If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.

9. Follow the instructions

Kind Reminder:
We recommend you to use baby oil, add 10-15ml.
Power need more than 12V.

KATOOL ST-105 Smoke Car Machine Emissions Leak Detector Pipe Diagnostic Tester

Features & Details
