Katool KT-AV651 3D Wheel Alignment Machine

5
0 Reviews
$4990.00 $5190.00
The AV651 is a mobile 3D wheel alignment machine designed for service bays equipped with two-post or scissor lifts. Its space-conscious alignment setup supports automotive repair shops and tire centers that need digital alignment readings without a large cabinet-based system. The source configuration includes a tablet, 30-inch display, mouse, keypad, printer, Wi-Fi device, and USB drive for practical daily alignment workflow.
About the Shop:   KATOOL
Payment:
Security & Privacy

· Secure privacy

· 100% Secure payment
FREE Retuns

· Refund for lost packages damaged items

· 30-day Free Retuns
Professional Service

· 12-months warranty

· Customer Support

Features & Details



Product Description

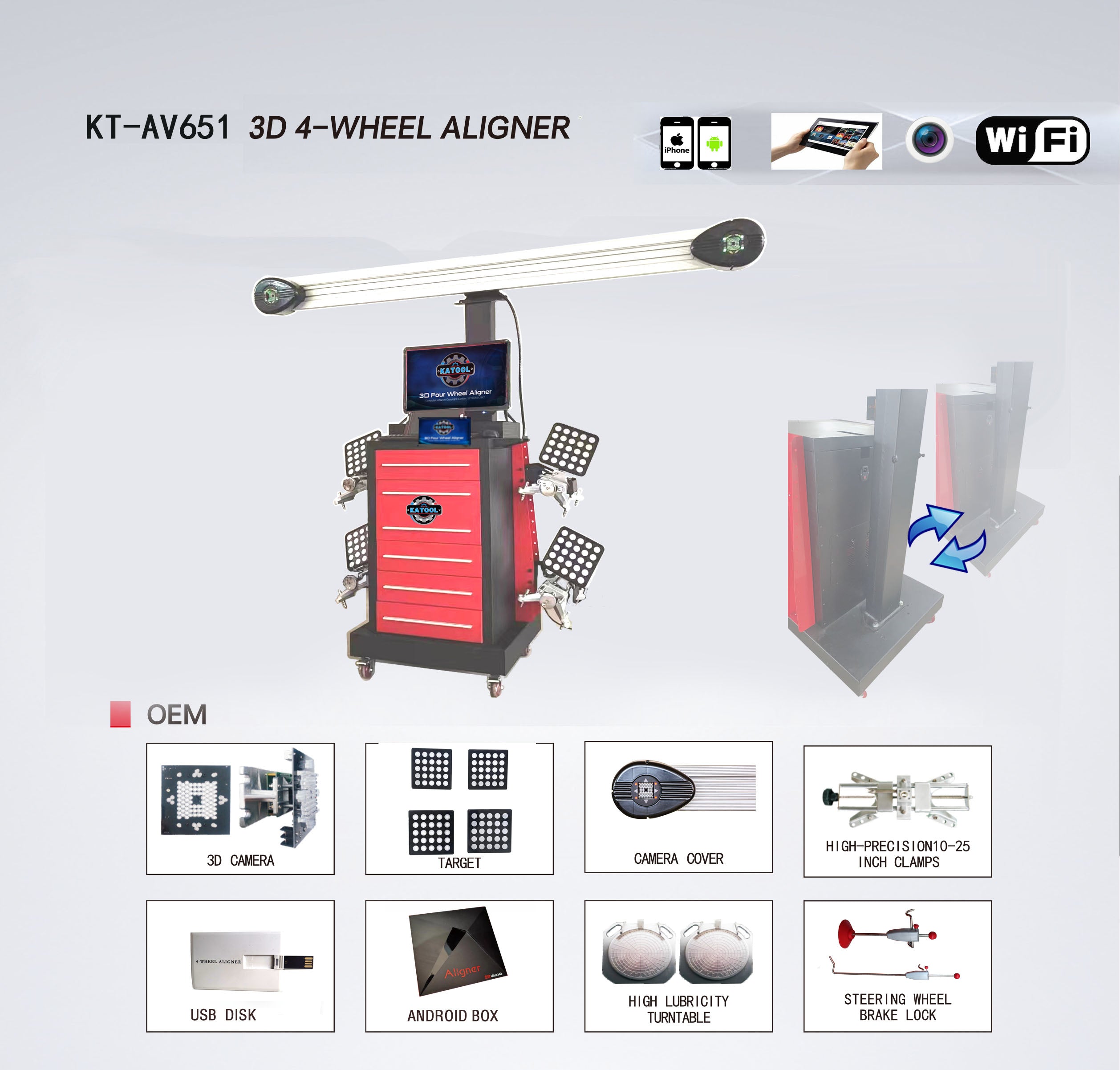

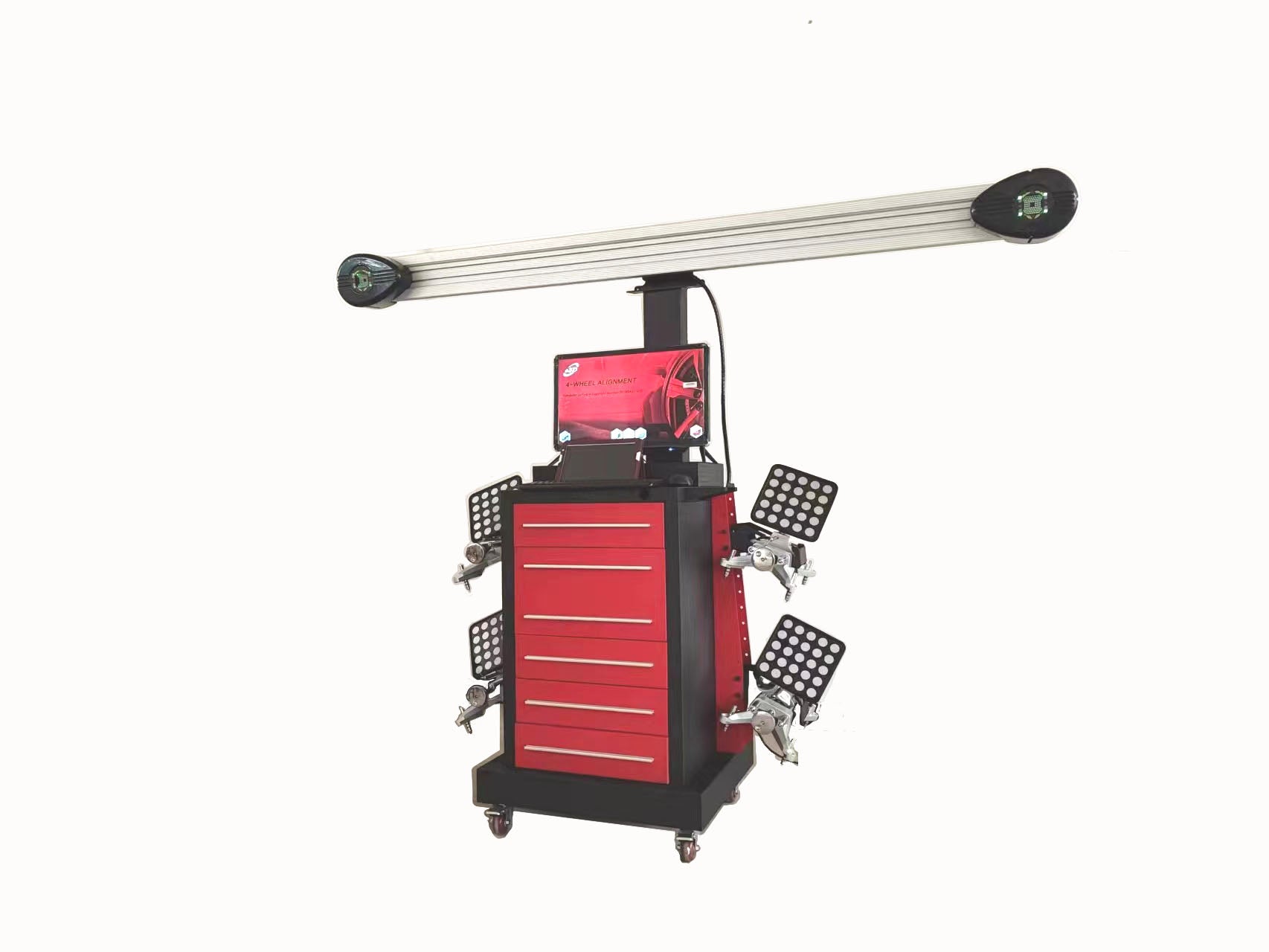

  • Mobile 3D Wheel Aligner for Lift Application
  • Unlimited memory for vehicle specifications
  • No calibration during installation

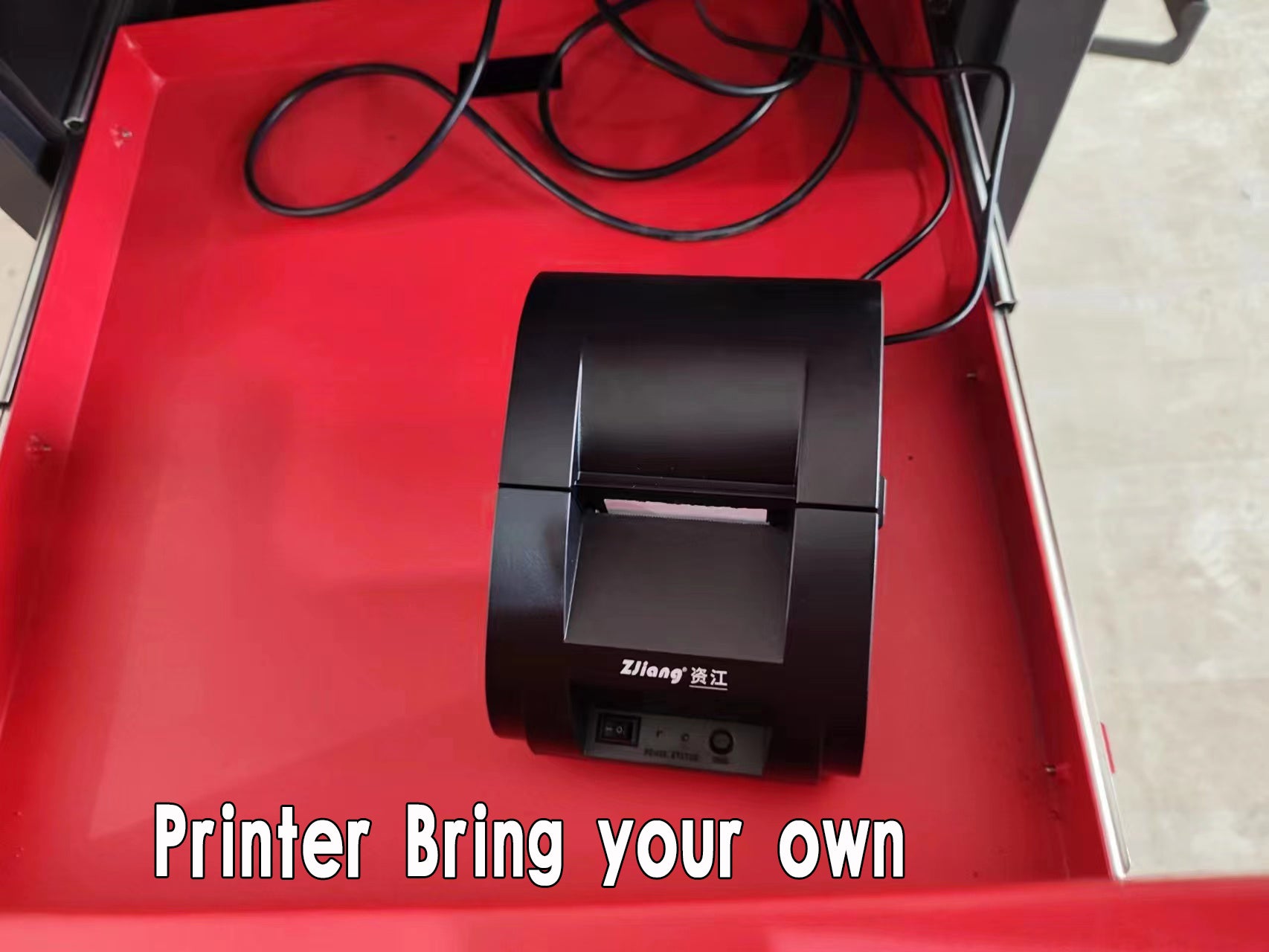

  • Includes tablet and a 30inch display screen, mouse and keypad, and a printer
  • Complementary wifi device and USB drive
  • Uses Android and IOS systems for the software, minimizes the need for software and system maintenance

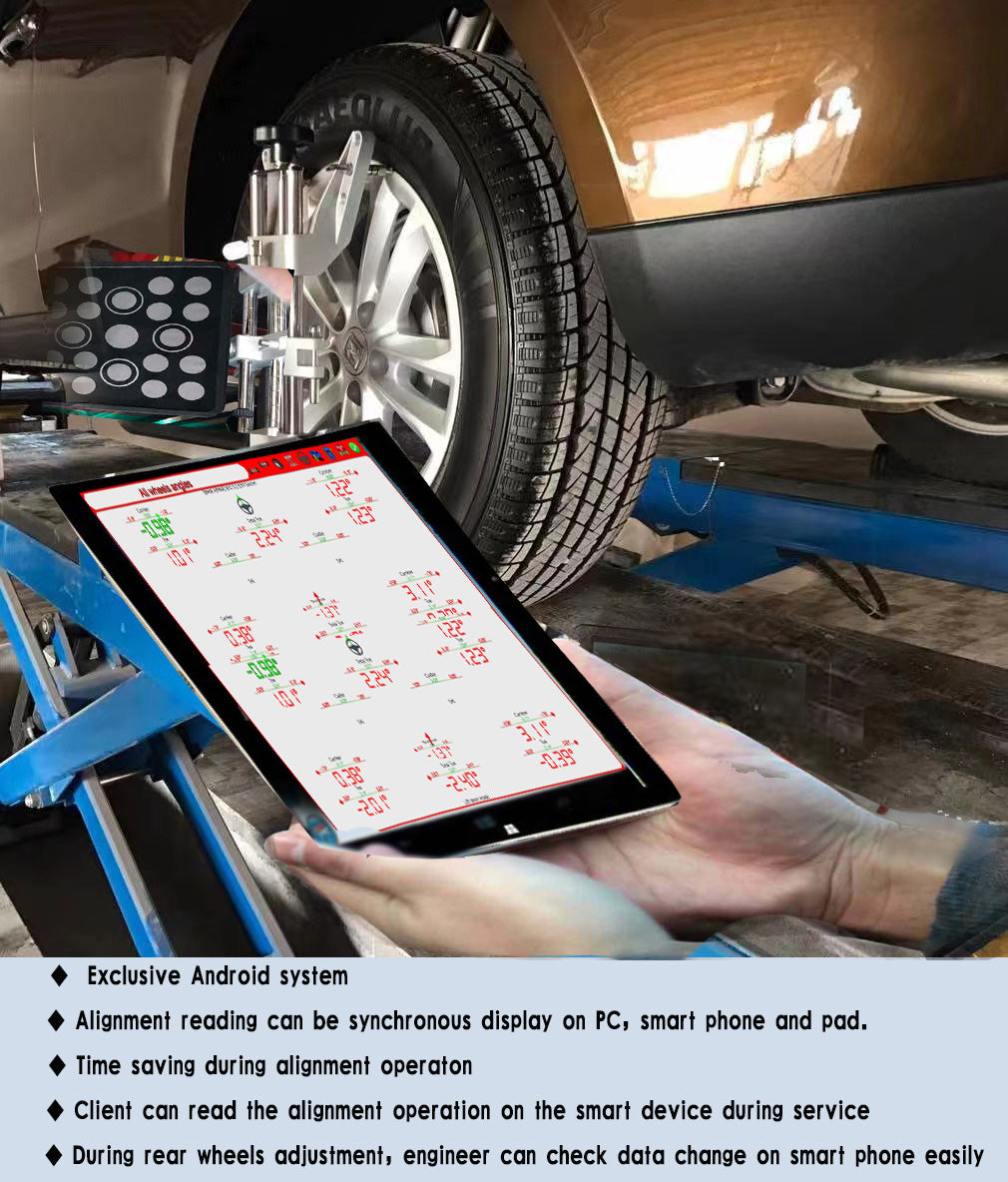

  • Synchronous Display on Smart Phone and Pad
  • The client can read the alignment operation on the smart device during the service
  • During rear wheel adjustment, the engineer can check data changes on a smartphone easily
  • The post moves manually
  • Free database upgrades yearly
  • The database keeps up with the most recent car models from all US, European and Asian brands.

AV651 Wheel Alignment Machine Specifications

SpecificationDetails
Power Supply100-240V, 50/60 Hz, 1 Ph
Working Temperature41°F–104°F (+5℃–+40℃)
Cameras (Total)2
Tire Diameter9 27/32–31 1/2 in (250–800 mm)
Wheelbase62 63/64–82 43/64 in (1.6–2.1 m)
Track Width70 55/64–177 11/64 in (1.8–4.5 m)
Warranty1-Year Limited
Product Weight440.92 lbs (200 kg)
Shipping Weight529.11 lbs (240 kg)
Shipping Dimensions29.92 × 48.03 × 47.24 in (760 × 1220 × 1200 mm)
110.24 × 12.6 × 15.75 in (2800 × 320 × 400 mm)
